Waratah Equine Fencing System

Waratah posts, wire, rail and accessories take the guess work out of choosing the right products for your equine fencing. Designed to work together, Waratah products offer versatility when it comes to choosing the right fence for your equine needs. From Longlife Blue netting for foaling yards to Electric Flex Rail for larger paddocks, Waratah have equine systems to suit a range of horse fencing applications.

Need help with your Equine Fencing project?

Contact us today!

COMMON EQUINE FENCE DESIGNS

Timber posts & rail

PVC rail and posts fences

Steel fencing fencing systems

Combination steel and rail fencing

Benefits:
  • Timber post & rail fences are a sturdy, durable & highly visible option, but can be expensive for installation & materials.
  • Fencing can be safe for horses, and can be beneficial for horses to scratch on.
  • Gives the traditional ranch aesthetic and is highly visible to horses.
Drawbacks:
  • Timber is rigid and when horses get spooked run at the fence this can cause injury to your horses.
  • Timber grades vary considerably, and can degrade over time, potentially reducing the life of the fence.
  • Broken timber posts can injure horses.
  • Timber requires semi regular maintenance to treat/paint, check for splinters & chewing.
  • Feral animals can easily move into your horse paddock, which can be a bio-security risk and add to grazing pressure.
  • Timber will burn in most bush and grass fire prone conditions.

Benefits:
  • Can often have superior flexibility, strength, weather resistance, especially when using the Waratah Flex Rail System.
  • Can easily be electrified, when using the Flex Rail Electric system.
  • Smoothness and flexibility of the rail minimises potential injury to both riders and horses.
  • No exposed wires mean there is less maintenance required.
  • Has the look and feel of timber which is very visible to horses, and can give the traditional ranch feeling.
  • Made from recycled polymer environmentally friendly.
Drawbacks:
  • If not constructed correctly horses can get stuck between the flex rail which could cause them distress.
  • PVC is generally UV treated, but can degrade faster in wide temperate variant climates.
  • Feral animals can freely move into your horse paddocks.

For PVC post & rail equine fencing systems check out Waratah's Poly Posts & Flex Rail Electric system.

Benefits:
  • A good design will ensure a steel horse fence delivers the right balance of strength, flexibility, & security.
  • Steel horse fences can keep horses safely contained & keep feral animals out of yards & paddocks.
  • Steel horse fences have lower installation costs & there is generally no need for heavy machinery.
  • Numerous accessories can be added to steel fences to increase strength, flexibility, visibility & security.
  • Using prefabricated wire like Stocksafe-T horse which has tight wire picket spacings with rigid knots can reduce the risk of hooves pawing, stepping or walking down the fence.
Drawbacks:
  • Cheap, poorly manufactured wire can expose edges & lack the correct structural rigidity.
  • Visibility can is compromised if not combined with the right post, rail or tape combination.
  • Does not look like your traditional 'horse ranch' style fence.

For a great quality steel equine fencing systems check out Waratah's Star posts, Prefabricated Stocksafe-T horse & netting products.

Benefits:
  • A good design will ensure a steel horse fence delivers the right balance of strength, flexibility, visibility & security.
  • Can easily be electrified, when using the Flex Rail Electric system.
  • Using prefabricated wire like Stocksafe-T horse which has tight wire picket spacings with rigid knots or a netting such as Netting Longlife .
    Blue® 90/4/1.4 can reduce the risk of hooves pawing, stepping or walking down the fence.
  • Steel horse fencing posts have a lower installation costs & there is generally no need for heavy machinery.
  • Using Waratah's Poly Posts can give you the impression and feel of a timber post system without the maintenance and upkeep required.
Drawbacks:
  • Parts do not look like a traditional 'horse ranch' style fence.

For a great quality steel equine fencing systems check out Waratah's Star posts, Prefabricated Stocksafe-T horse & netting products. For PVC post & rail equine fencing systems check out Waratah's Poly Posts & Flex Rail Electric system.

WARATAH EQUINE FENCE DESIGNS

Move your mouse over a fence design to see what the fence is comprised of!

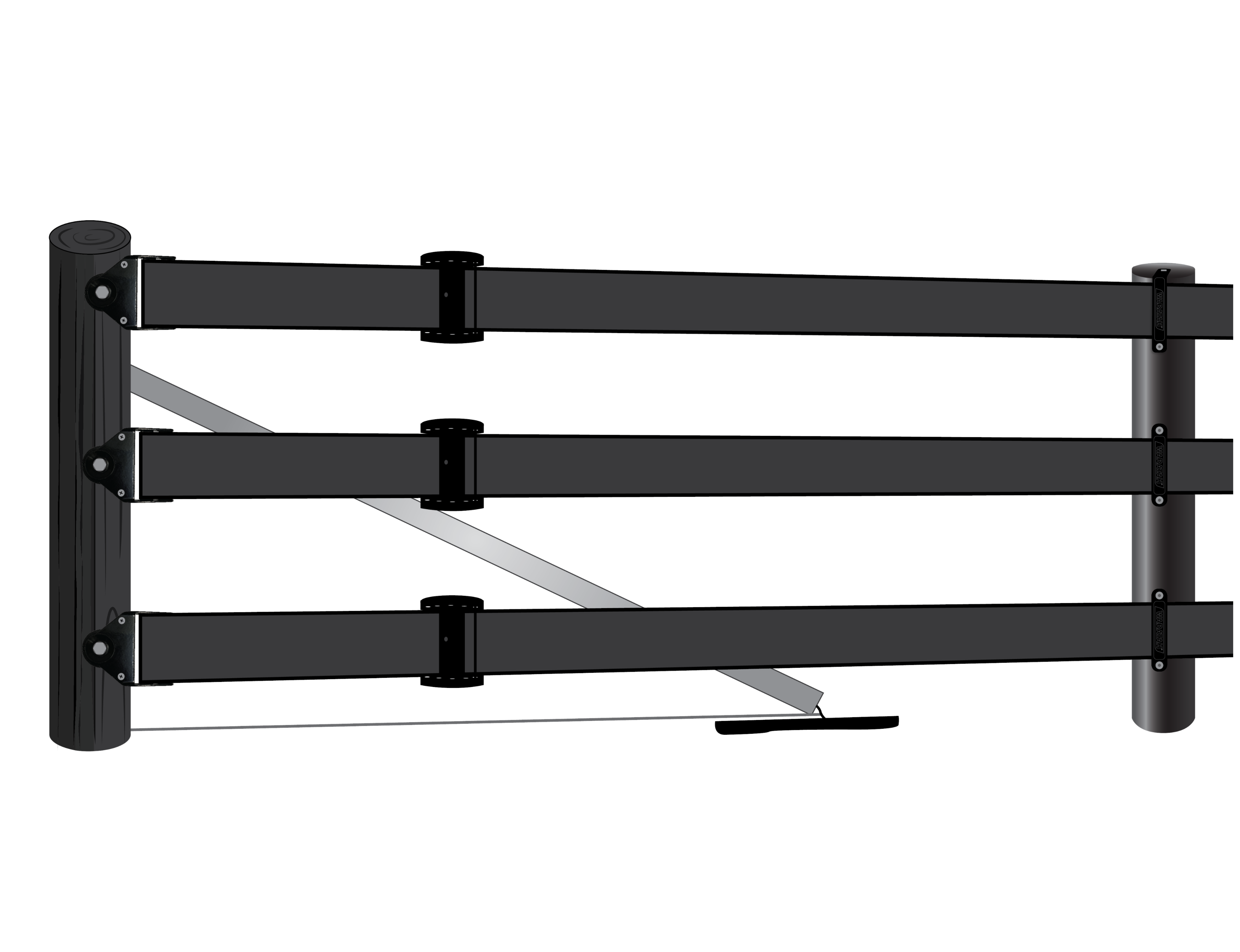

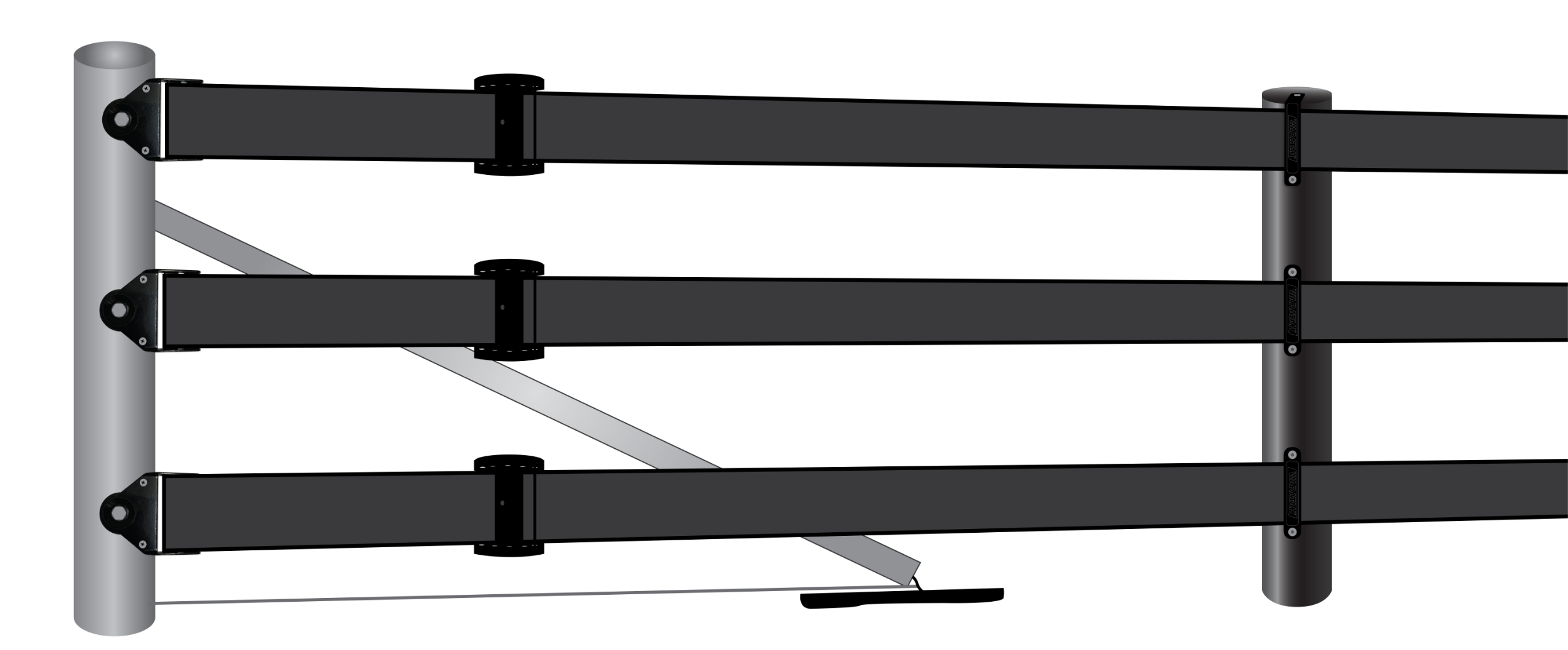

3 FLEX RAIL ELECTRIC HORSE FENCE

Strainer Post and Stay:
  • Timber strainer post
  • Adjusta-stay
Posts:
  • Poly Post - 120mm OR
  • Poly Star® post kit - 100mm
Wire:
  • Flex Rail Electric
Accessories:
  • Flex Rail Electric in-line side bracket
  • Flex Rail Electric in-line top bracket
  • Flex Rail Electric end angle bracket
  • Flex Rail Electric tension spool
  • Flex Rail Electric Joiner bracket

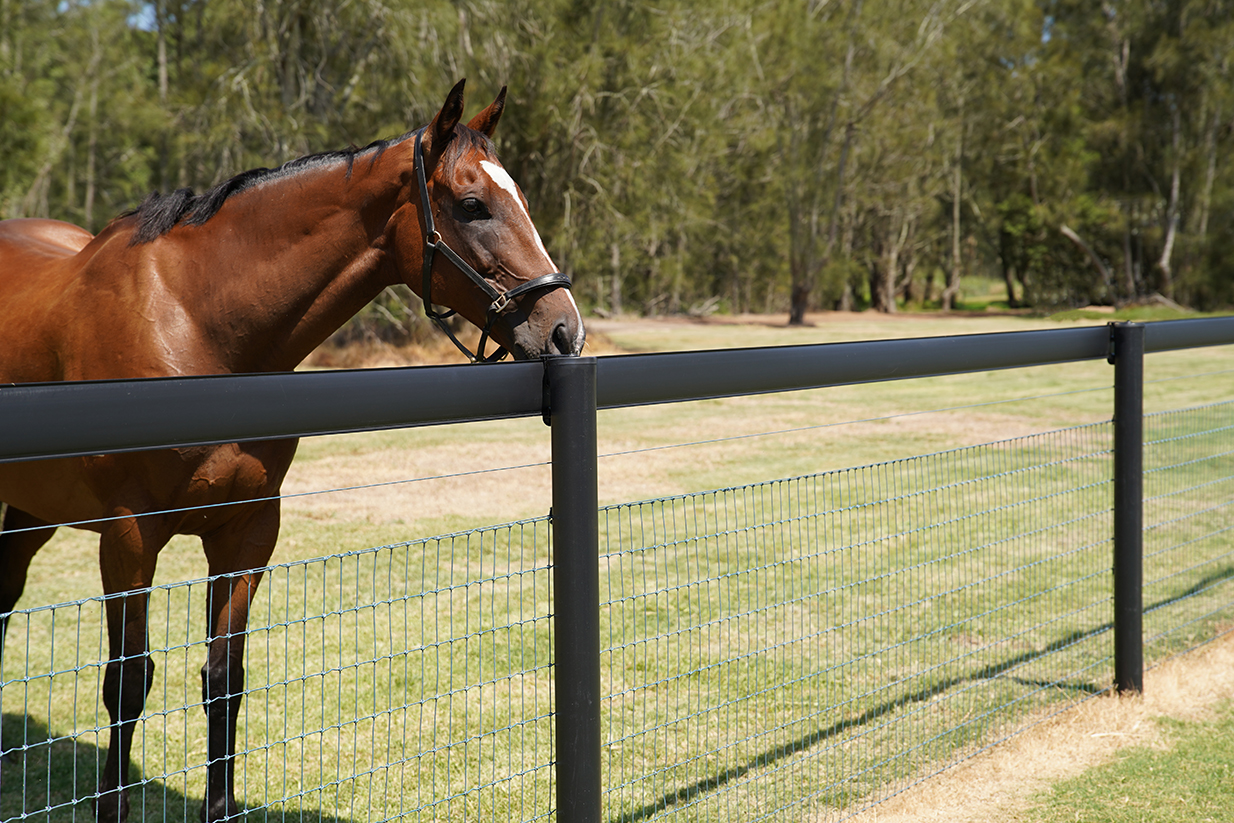

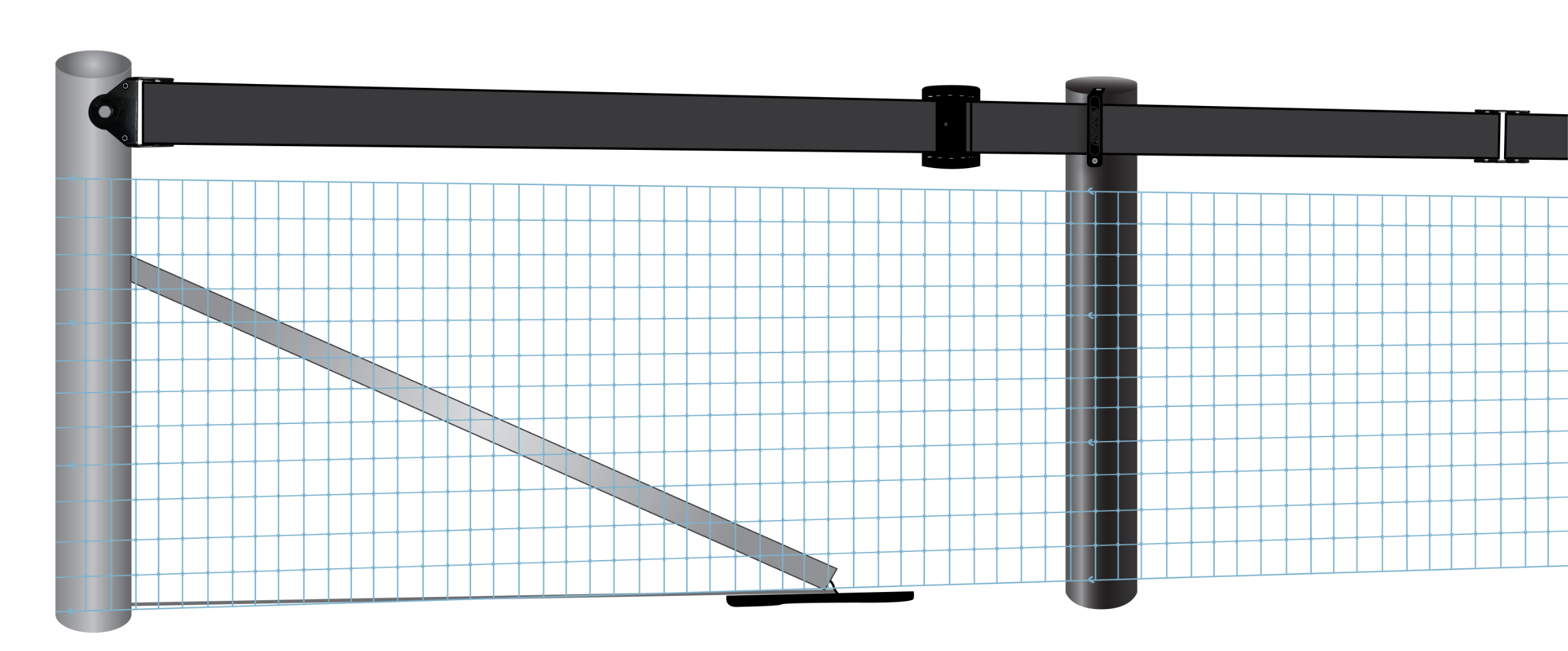

FLEX RAIL ELECTRIC HORSE FENCE WITH STOCKSAFE-T LONGLIFE BLUE

Strainer Post and Stay:
  • Timber strainer post
  • Adjusta-stay
Posts:
  • JiO Star post 165cm
  • Poly Star post kit - 100mm
Wire:
  • Flex Rail Electric
  • Stocksafe-T Longlife Blue 13/122/5
Accessories:
  • Flex Rail Electric in-line top bracket
  • Flex Rail Electric end angle bracket
  • Flex Rail Electric tension spool
  • Flex Rail Electric Joiner bracket

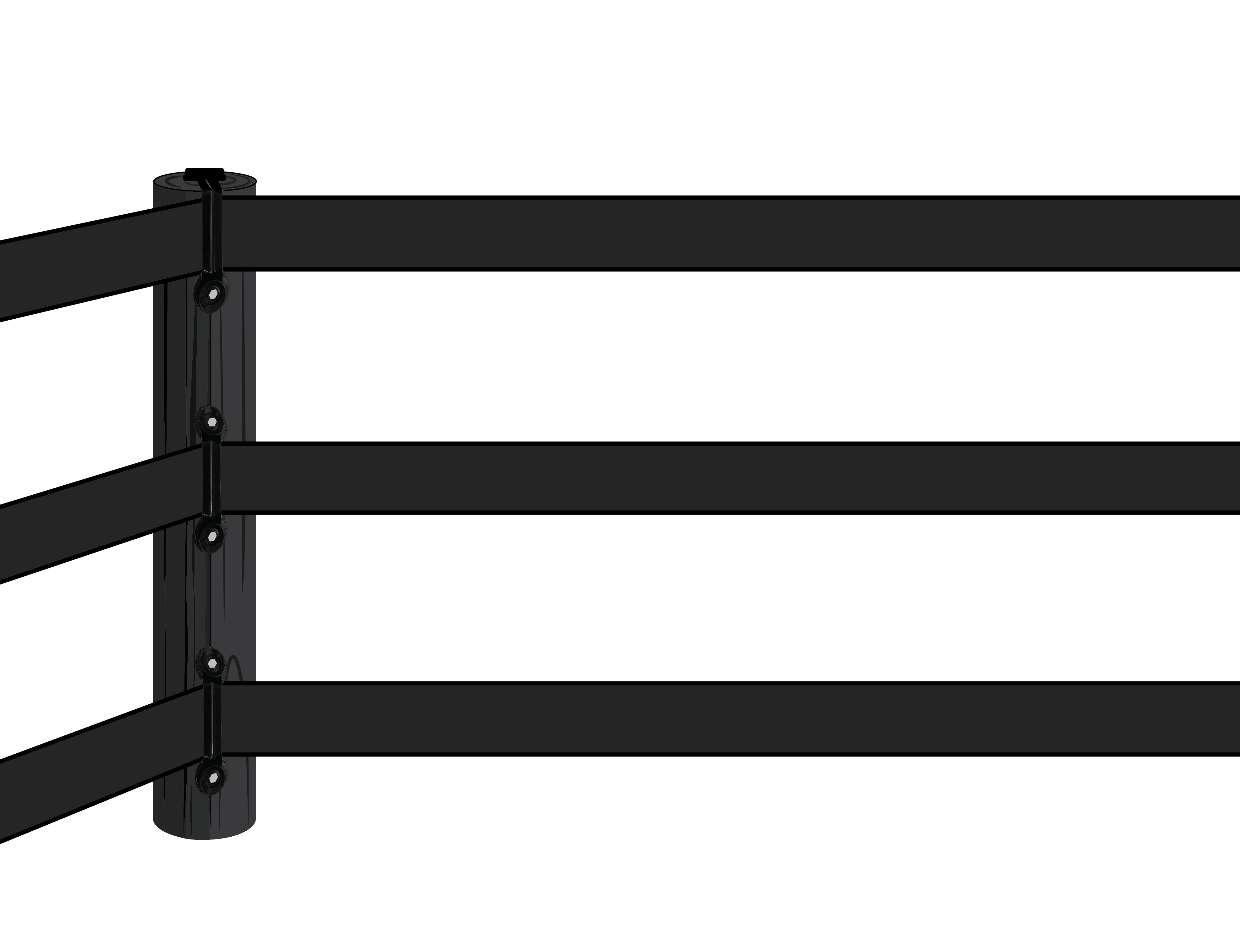

FLEX RAIL CORNER BRACKET FENCE DESIGN

Posts:
  • Timber corner post
  • Poly post -120mm
Wires:
  • Flex Rail Electric
Accessories:
  • Flex Rail Electric in-line side bracket
  • Flex Rail Electric in-line top bracket
  • Flex Rail Electric corner side bracket
  • Flex Rail Electric corner top bracket

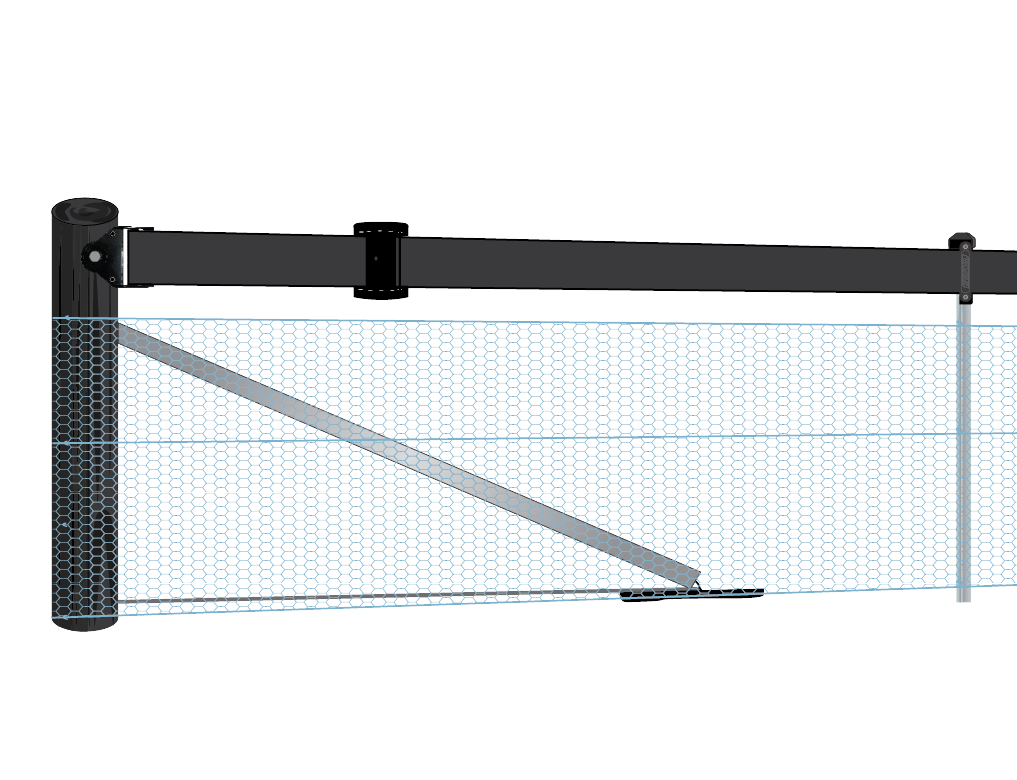

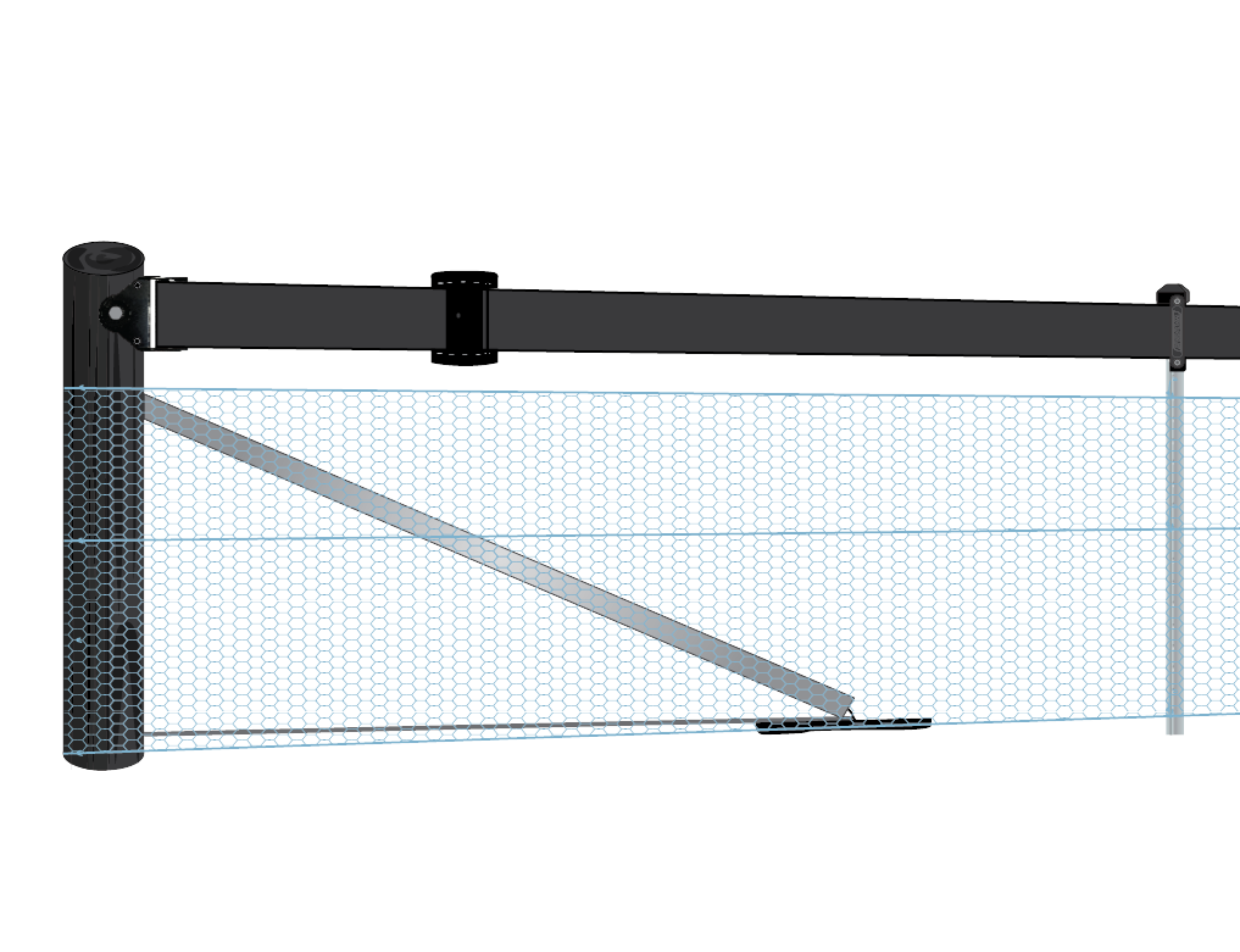

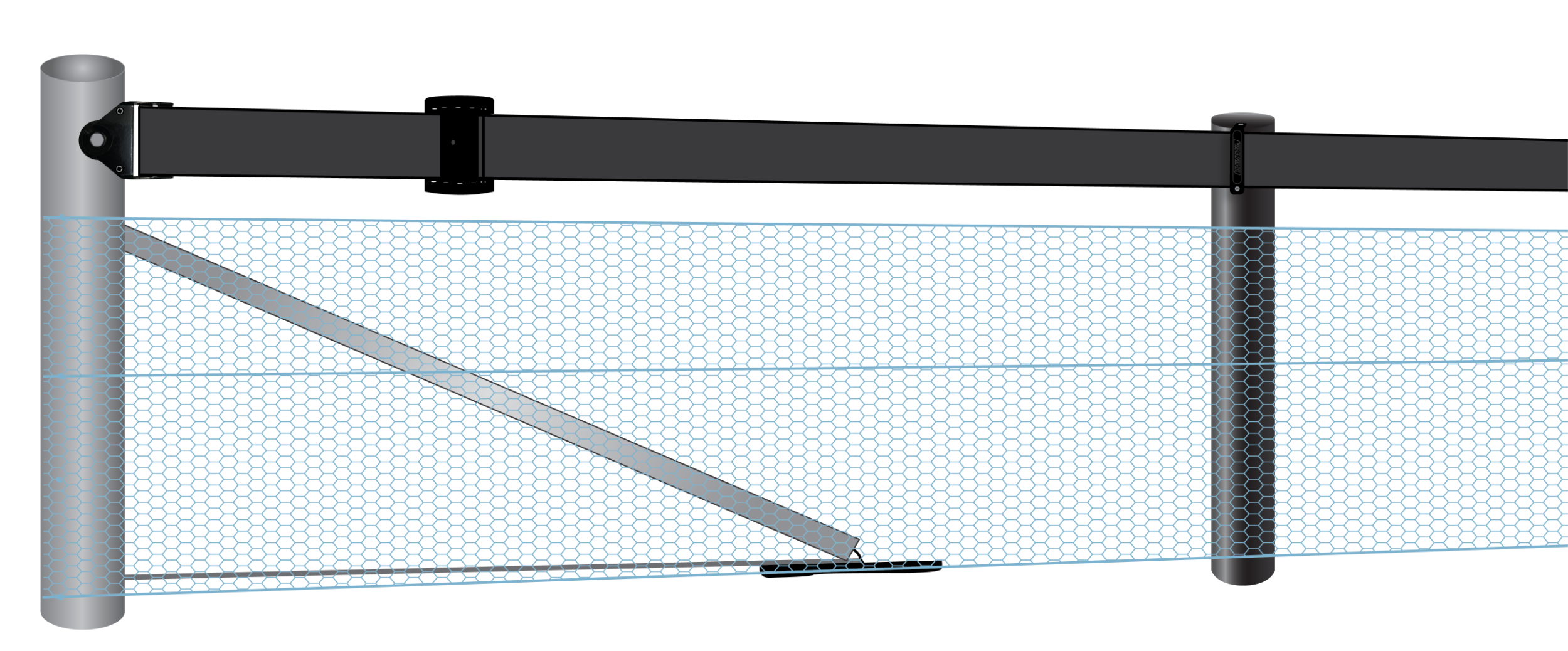

JiO® POST FLEX RAIL & NETTING DESIGN

Strainer Post and Stay:
  • Timber strainer post
Posts:
  • JiO Star post 165cm
Wire:
  • Flex Rail Electric
  • Netting Longlife
    Blue® 90/4/1.4
Accessories:
  • Flex Rail Electric tension spool
  • Flex Rail Electric end flat bracket
  • JiO star Flex rail post cap
  • Flex Rail Electric Joiner bracket

WARATAH FLEX RAIL SYSTEM

One of the key parts of the Waratah Equine fencing system is the Waratah Flex Rail System.

 Click here to learn more!

WARATAH EQUINE FENCING PRODUCT RANGE

Waratah provide specifically designed horse fencing products that can be used in both combination and steel fencing systems.

 View Now

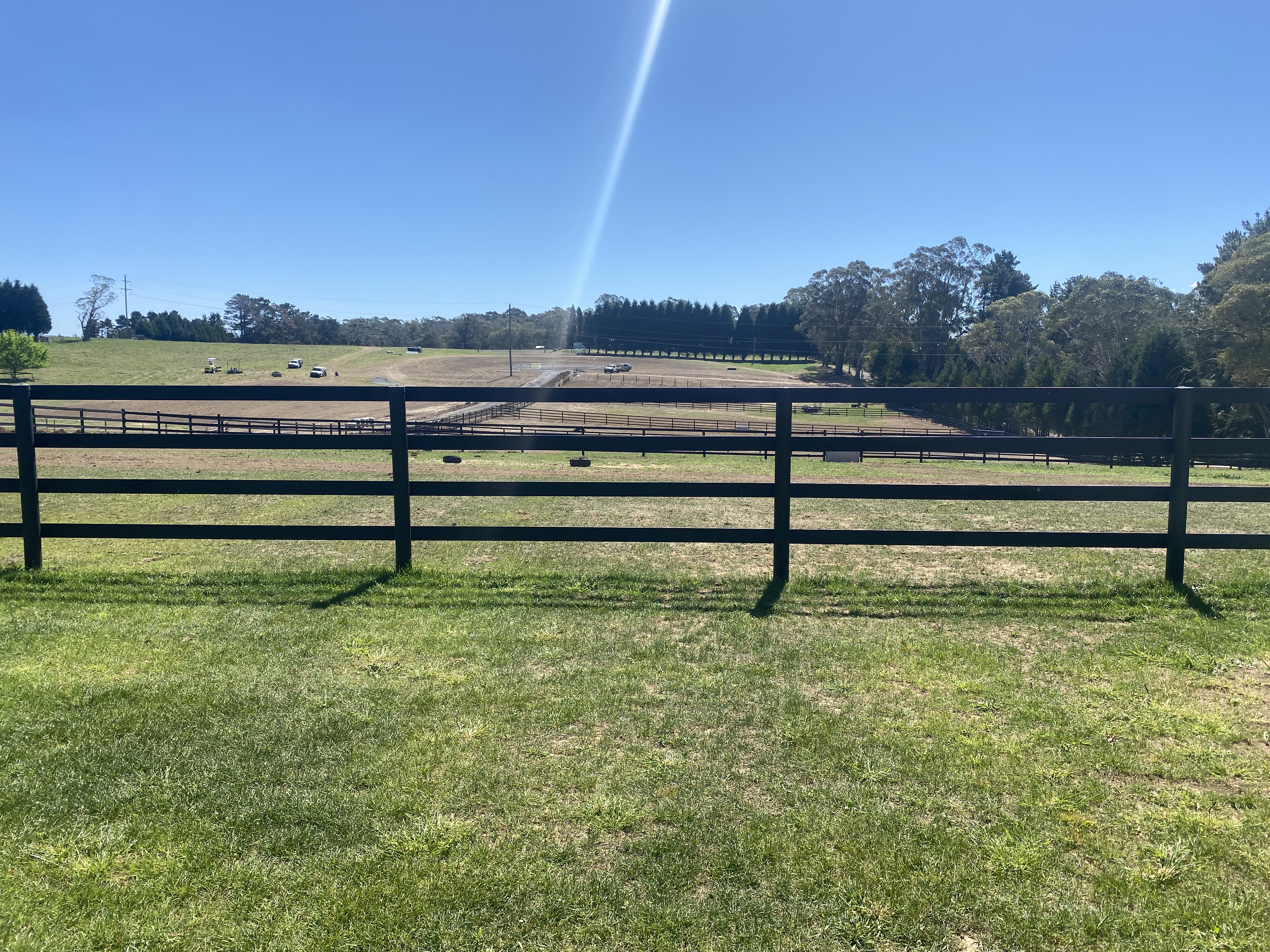

CUSTOMER SOLUTIONS

Maximising Safety for your horses.



“I’ve been in the horse industry all my life and I’ve seen multiple injuries, so we really needed a strong, safe fence and that’s when we found Waratah. Since installing this system, we haven’t had any injuries to our horses. Its speed of install also allowed us to get our paddocks up and running quickly on our new site providing safe housing for the horses. The biggest value to us is saving on maintenance cost, which is very high on older style post and rail timber fences.”

 - Chloe Sawell , NSW.
