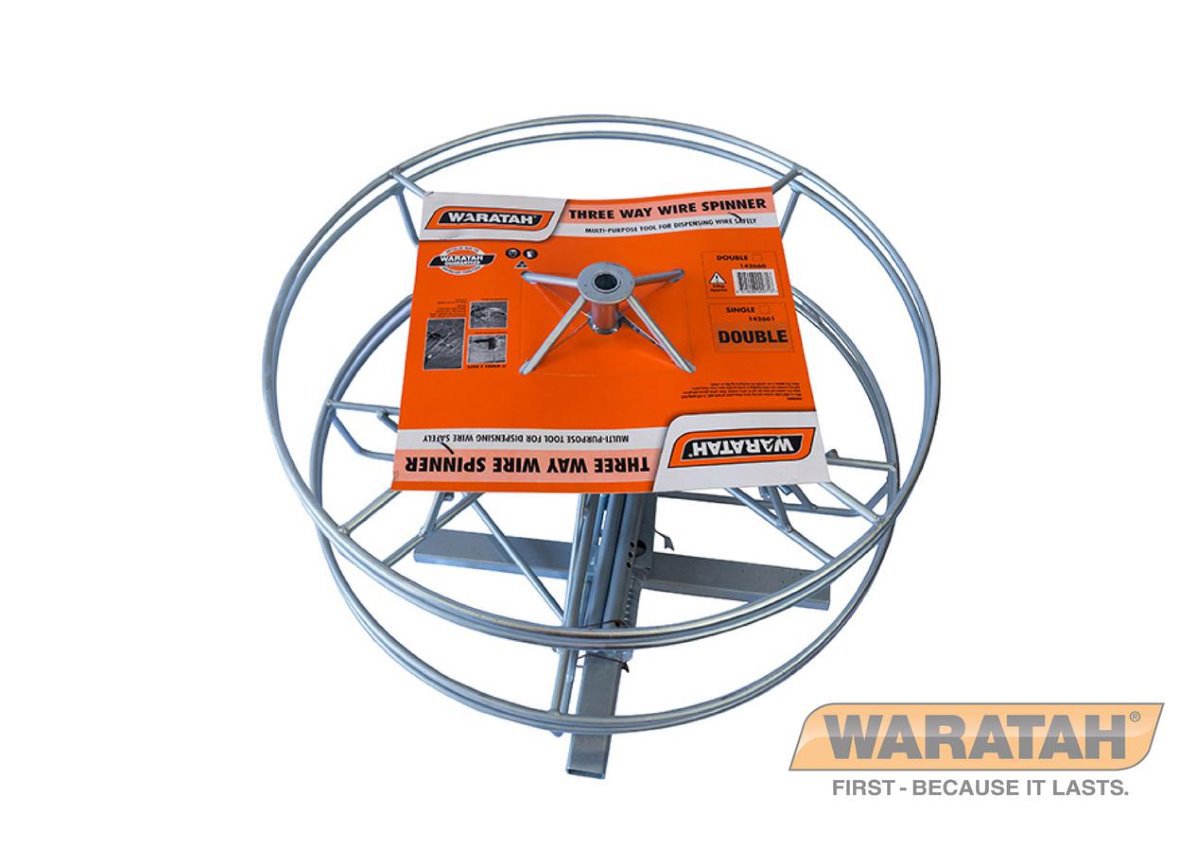

THREE-WAY WIRE SPINNER

FEATURES

Multi-purpose tool designed to dispense wire safely
Suitable for safely spinning out plain and barbed wire without tangling or over-running
Operates in a stationary position or as a 'hand cart' along the fence line
Double cradle wire spinners are also available for simultaneous dual coil payout

SPECIFICATIONS

Weight: Three way wire spinner 20.0kg
Double wire spinner 23.0kg

SCAN FOR MORE INFORMATION

Tools

Three way Wire Spinner

Features & Benefits
Specifications

Multi-purpose tool designed to dispense wire safely
Suitable for safely spinning out plain and barbed wire without tangling or over-running
Operates in a stationary position or as a 'hand cart' along the fence line
Double cradle wire spinners are also available for simultaneous dual coil payout

< >

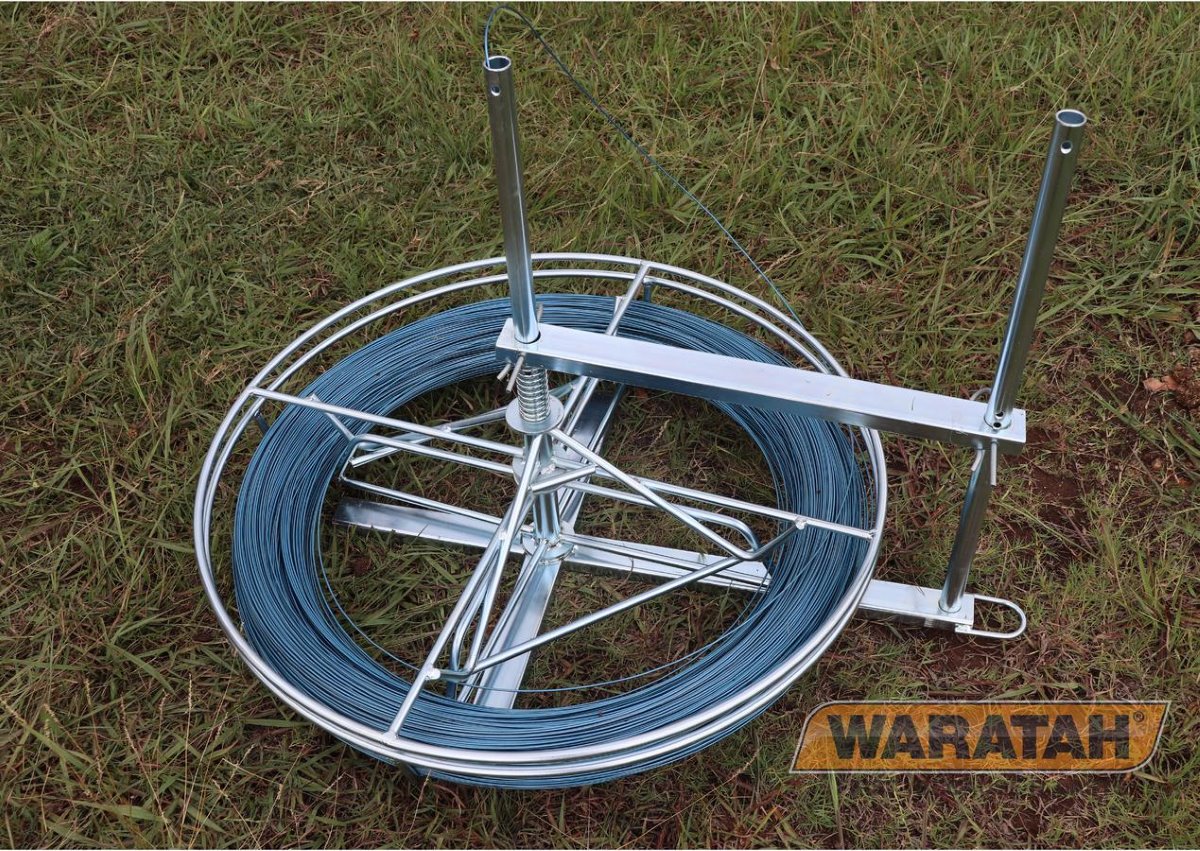

How to use a Waratah wire spinner

Step 1

Place one of the spindles into the centre hole of cross shaped base and secure underneath with bolt provided. Check that the holes in the spindles are facing the same direction as the shortest arms on the cross shaped base. Repeat this step for the outer spindle.

Step 2

Mount bottom cradle on centre spindle and insert wire coil. Remove any ties from the wire coil.

Step 3

Install top cradle so that its diagonal supports rest on the two horizontal bars of the bottom cradle – otherwise the cradles will not lock together.

Step 4

Place tension spring on centre spindle and slide compression bar into place. Insert “R” clips through compression bar and spindles and keep it parallel to the base.

Now your Waratah wire spinner is ready to use!

Specifications

Weight: Three way wire spinner 20.0kg
Double wire spinner 23.0kg

Suggested Applications
