EZYPIPE® STRAINER POST
A round post alternative to traditional timber, pipe and concrete strainer posts.
FEATURES
|
|
SPECIFICATION
Product |
Length (m) |
Pipe |
Material |
Coating |
|---|---|---|---|---|
| Ezypipe Strainer Post |
2.15 | Pipe 89mm (OD) x 4mm (wall) |
250 grade pipe | Hot-dipped galvanized (min 300g/m2) |
| Ezypipe Strainer Post |
2.50 | Pipe 89mm (OD) x 4mm (wall) |
250 grade pipe | Hot-dipped galvanized (min 300g/m2) |
| Ezypipe Strainer Post |
3.25 | Pipe 89mm (OD) x 4mm (wall) |
250 grade pipe | Hot-dipped galvanized (min 300g/m2) |
* Adjustable collar locations using pre-drilled holes – Collar comes pre-set at 2nd hole (1500mm above ground), but can be adjusted to 1400mm or 1600mm above ground.
SCAN FOR MORE INFORMATION
Strainer Assemblies

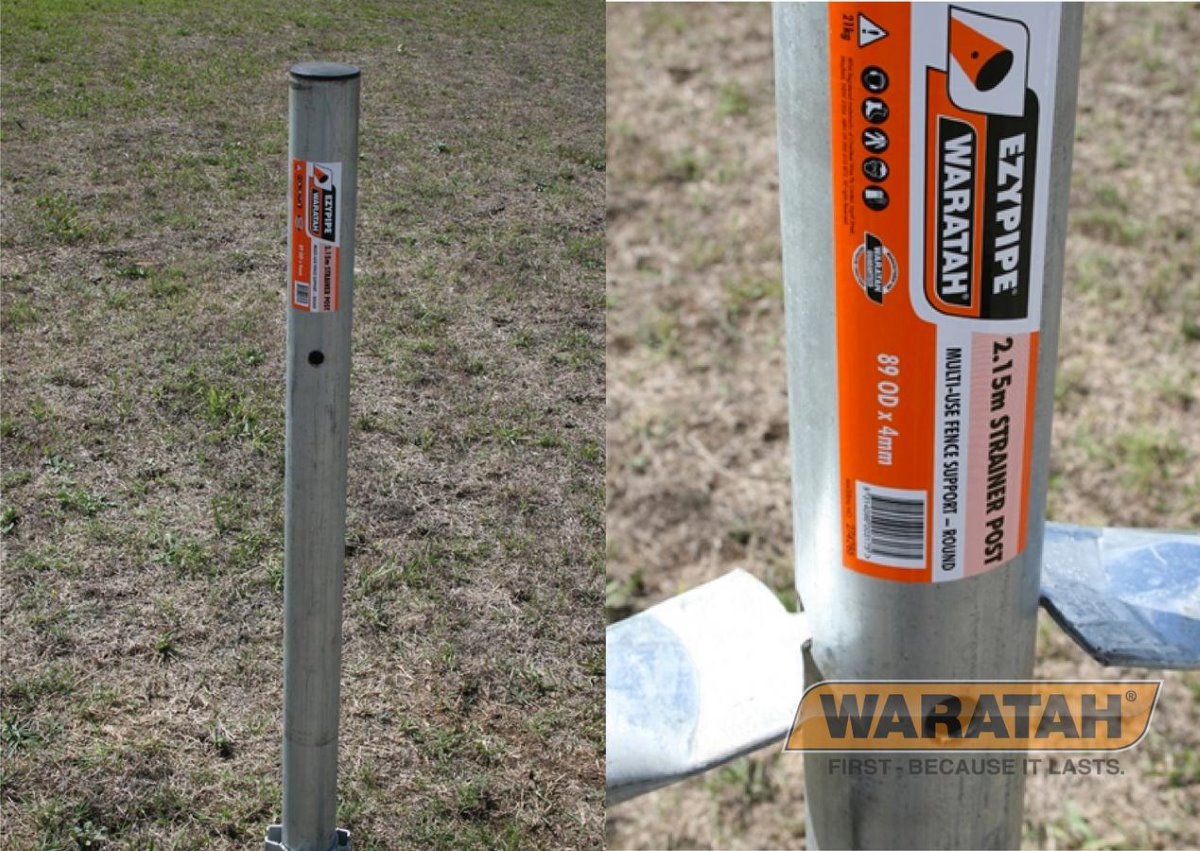

Ezypipe® Strainer Post
- A round post alternative to traditional timber, pipe and concrete strainer posts.
- Good corrosion protection, termite proof and fire resistant.

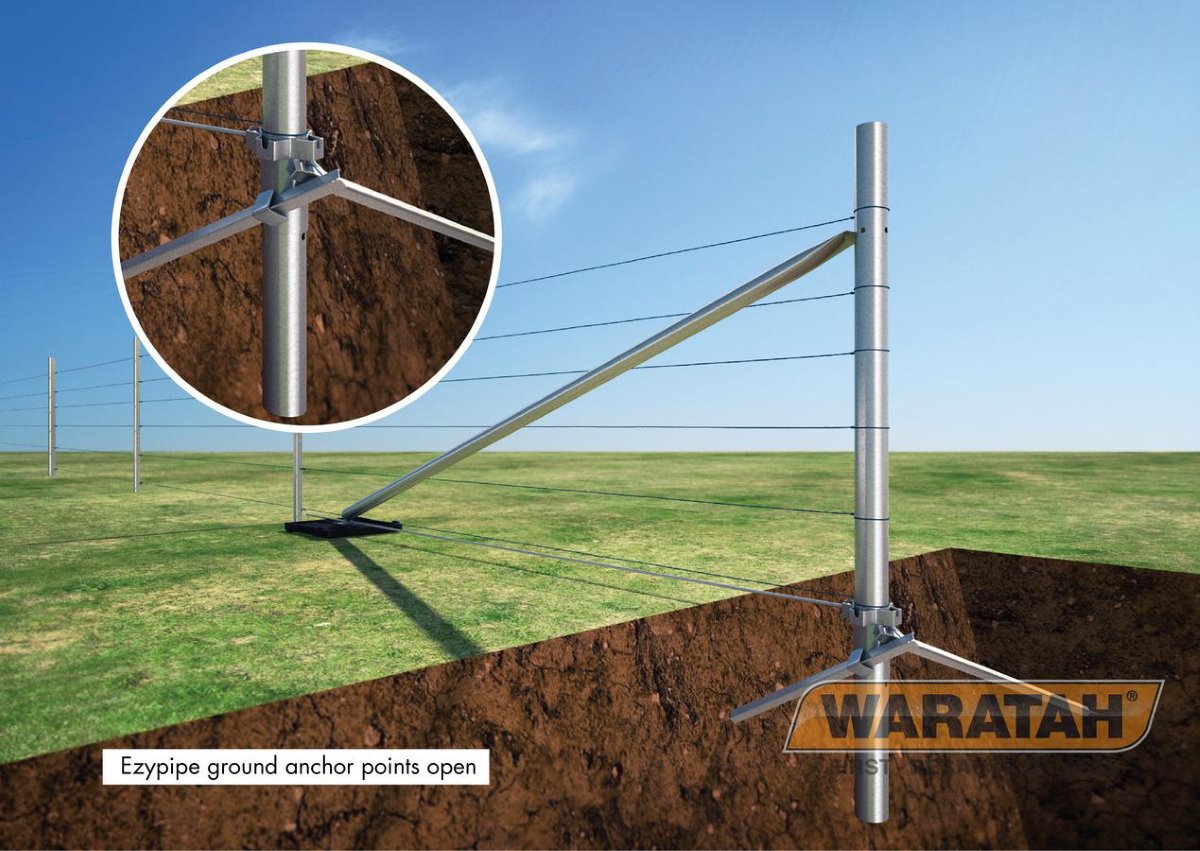

- Best suited to medium–soft ground applications where the greater surface area and anchor points provide improved ground-holding capacity.

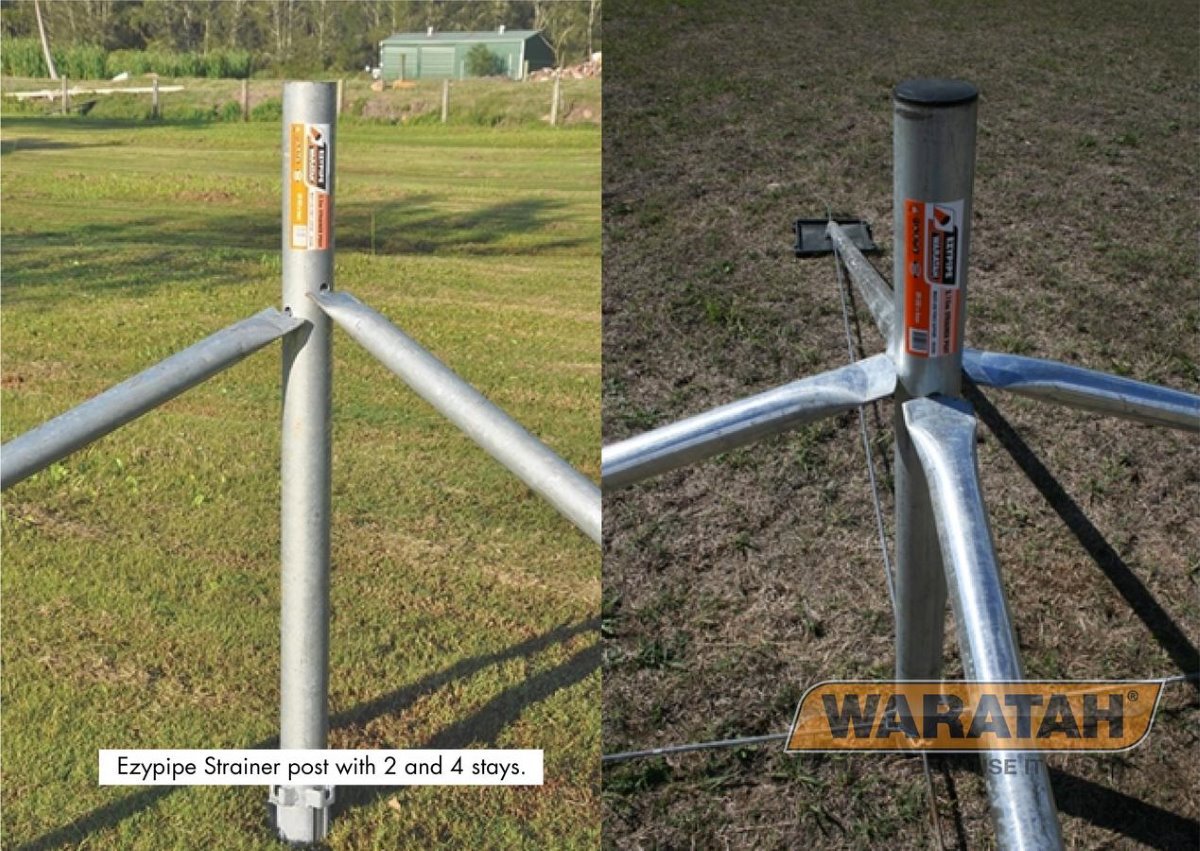

- Can be stayed up to 4 ways through 360 degrees which is also suitable as an in-line strainer.
- Economical to erect and capable of withstanding high-pressure loads.
- Coating: Hot dipped galvanized coating (min 300g/m2)
Lengths: 2.15m, 2.50m and 3.25
Pipe: 89mm (OD) x4mm (wall)
Material: 250 grade pipe
| Product | Length (m) | Pipe | Material | Coating |
|---|---|---|---|---|
| Ezypipe Strainer Post |
2.15 | Pipe 89mm (OD) x 4mm (wall) |
250 grade pipe | Hot-dipped galvanized (min 300g/m2) |
| Ezypipe Strainer Post |
2.50 | Pipe 89mm (OD) x 4mm (wall) |
250 grade pipe | Hot-dipped galvanized (min 300g/m2) |
| Ezypipe Strainer Post |
3.25 | Pipe 89mm (OD) x 4mm (wall) |
250 grade pipe | Hot-dipped galvanized (min 300g/m2) |
Suggested Strainer Post Installation Height
| Post | Above Ground | In Ground (min) |
|---|---|---|
| Ezypipe 2.15m | 1250mm | 900mm |
| Ezypipe 2.50m* | 1400-1600mm | 900-1100mm |
| Ezypipe 3.25m | 2050mm | 1200mm |
* Adjustable collar locations using pre-drilled holes – Collar comes pre-set at 2nd hole (1500mm above ground), but can be adjusted to 1400mm or 1600mm above ground.
