Ezypipe® Strainer Post

  • A round post alternative to traditional timber, pipe and concrete strainer posts.
  • Good corrosion protection, termite proof and fire resistant.

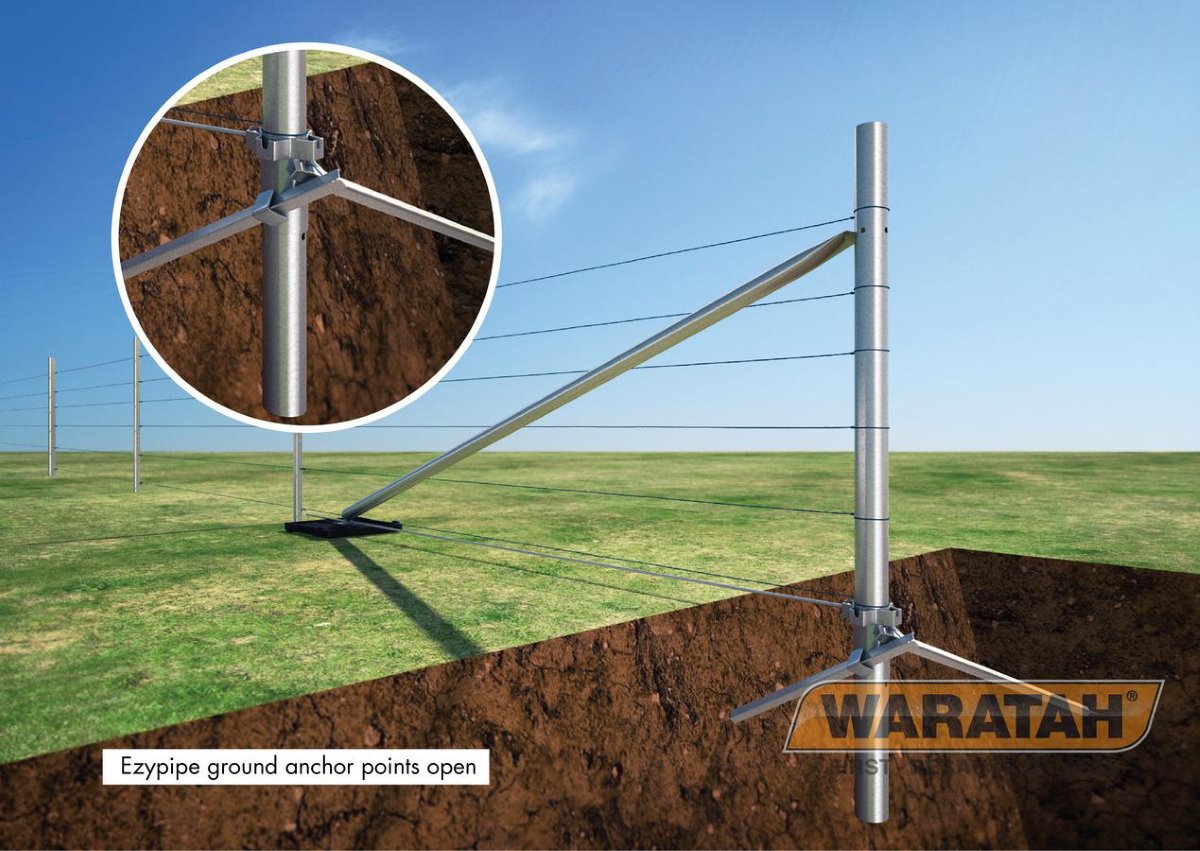

  • Best suited to medium–soft ground applications where the greater surface area and anchor points provide improved ground-holding capacity.

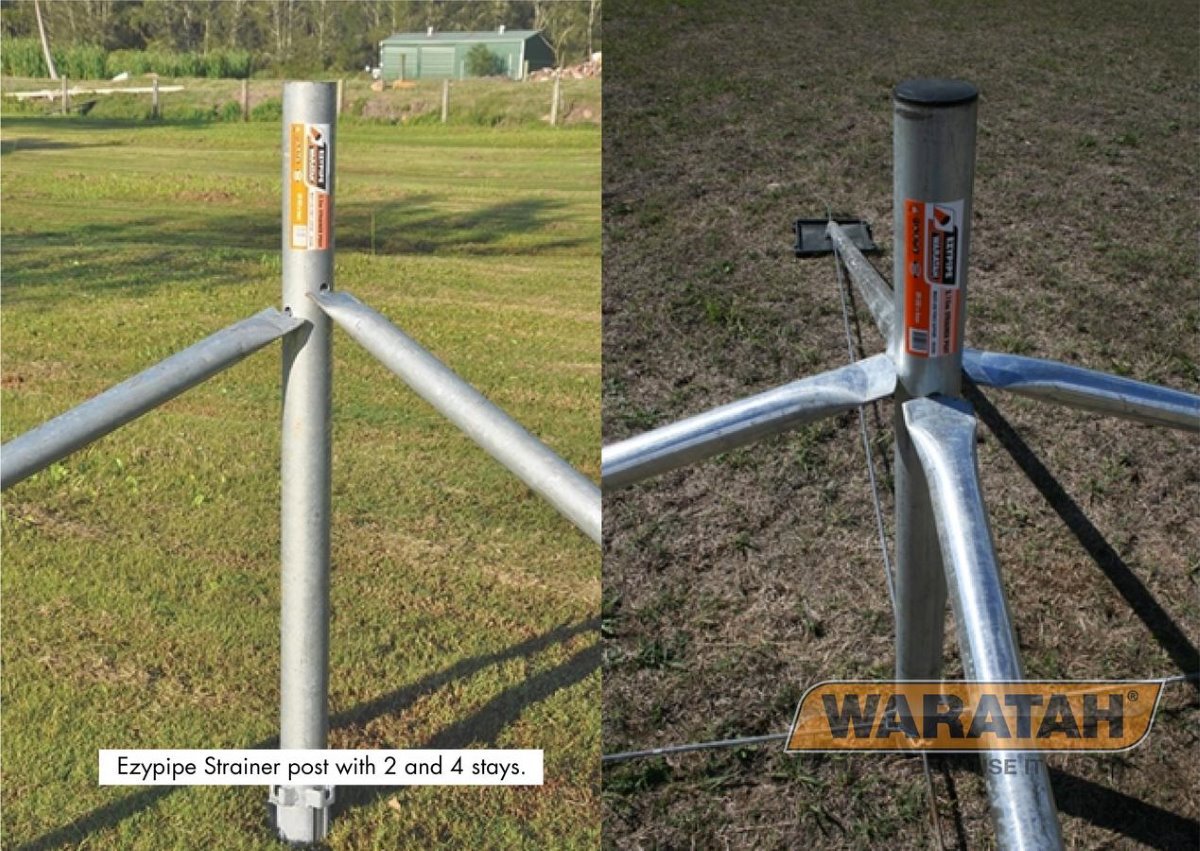

  • Can be stayed up to 4 ways through 360 degrees which is also suitable as an in-line strainer.
  • Economical to erect and capable of withstanding high-pressure loads.
  • Coating: Hot dipped galvanized coating (min 300g/m2)


Lengths: 2.15m, 2.50m and 3.25

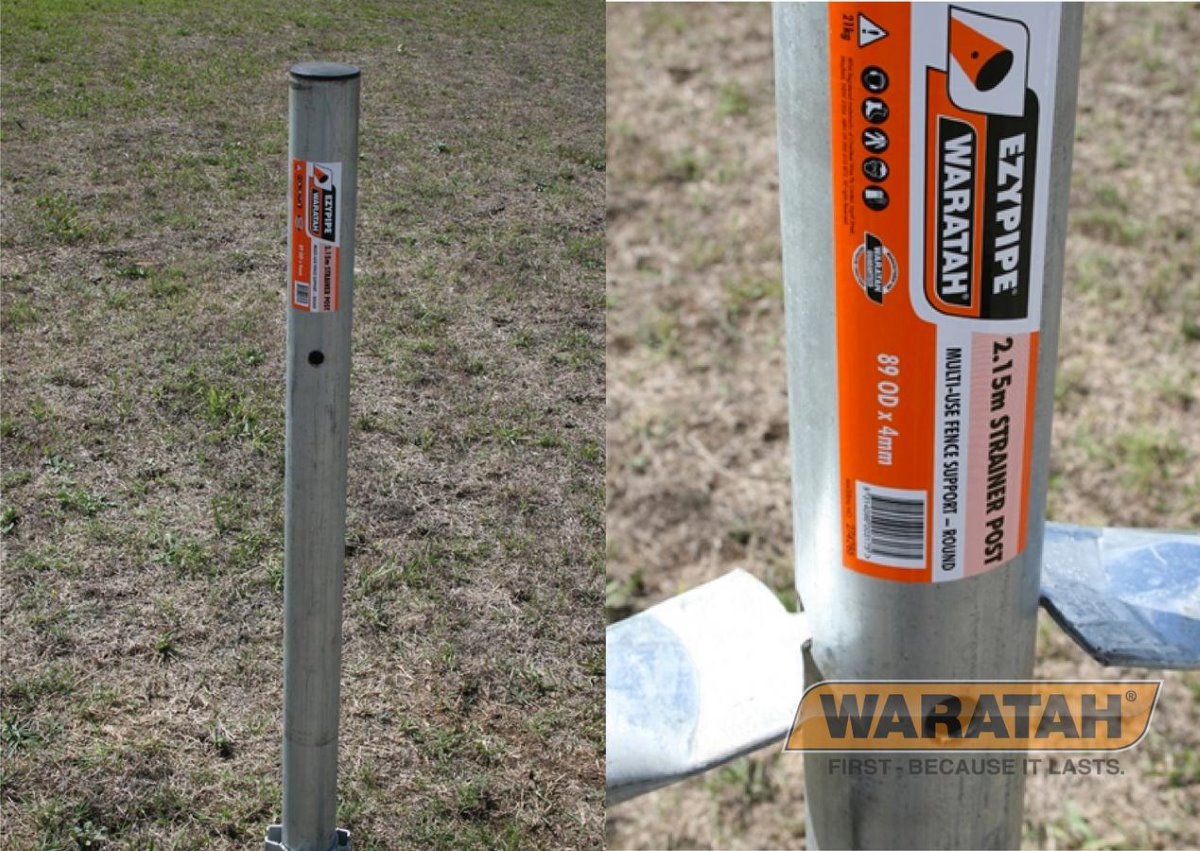

Pipe: 89mm (OD) x4mm (wall)
Material: 250 grade pipe

Product Length (m) Pipe Material Coating
Ezypipe Strainer
Post
2.15 Pipe 89mm (OD)
x 4mm (wall)
250 grade pipe Hot-dipped galvanized
(min 300g/m2)
Ezypipe Strainer
Post
2.50 Pipe 89mm (OD)
x 4mm (wall)
250 grade pipe Hot-dipped galvanized
(min 300g/m2)
Ezypipe Strainer
Post
3.25 Pipe 89mm (OD)
x 4mm (wall)
250 grade pipe Hot-dipped galvanized
(min 300g/m2)

Suggested Strainer Post Installation Height

Post Above Ground In Ground (min)
Ezypipe 2.15m  1250mm 900mm
Ezypipe 2.50m* 1400-1600mm 900-1100mm
Ezypipe 3.25m 2050mm 1200mm
* Adjustable collar locations using pre-drilled holes – Collar comes pre-set at 2nd hole (1500mm above ground), but can be adjusted to 1400mm or 1600mm above ground.
